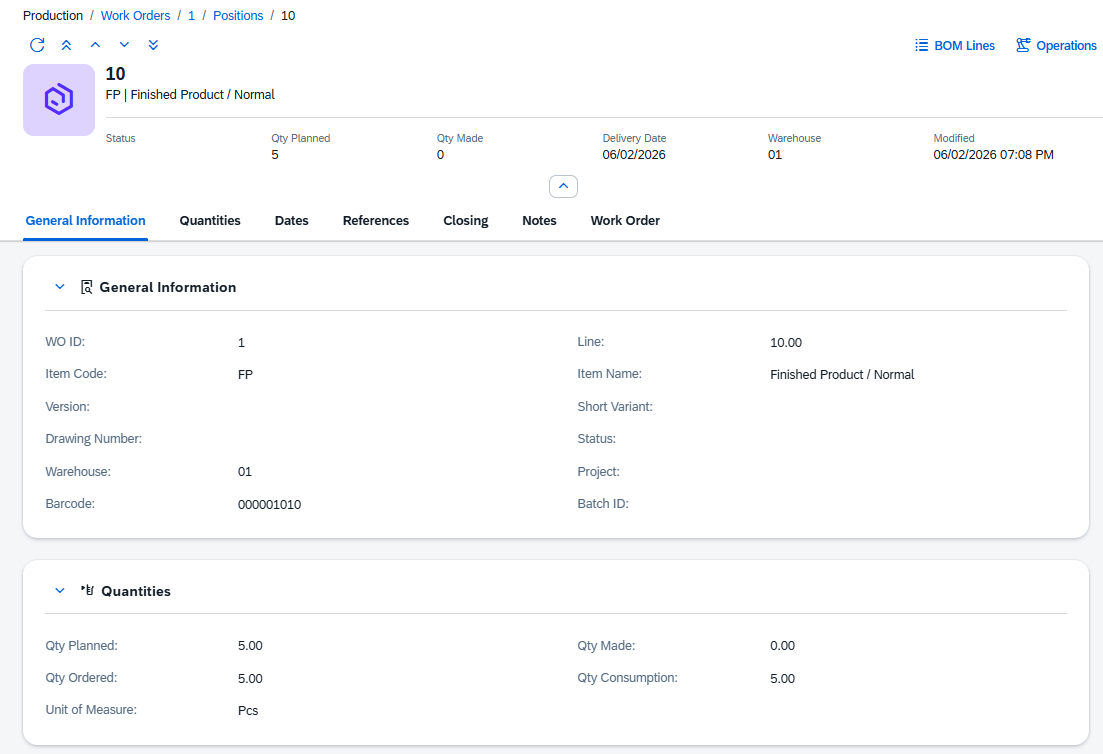

WO Positions - Detail

The Work Order Position detail page is where you view a single production line. It shows what item is being produced, how many have been planned and made, the schedule dates and any references to the originating document. From the page header you can also navigate to the position's Work Order Bill of Materials, Operations and Cost Calculation sub-views.

Opening the view

1. Open a work order and press View Positions, then click a position row.
2. Alternatively, go to Documents › Work Order Positions and click any row.

Header

The header identifies the position and shows its most important figures.

Element	Description
Title	The line number of the position within its work order.
Subtitle	The item code and item name, shown as Item Code | Item Name.
Status	The current status code of the position.
Qty Planned	The planned production quantity.
Qty Made	The quantity already produced and goods-receipted.
Delivery Date	The date the output is due.
Warehouse	The warehouse the output is posted to.
Modified	Date and time of the most recent save.

Navigation buttons

• Edit — click to make the position editable. Enter your changes and click Save in the right-bottom corner.
• Work Order Bill of Materials — opens the Work Order Bill of Materials view to view Bill of Materials details for this position.
• Operations — opens the Work Order Routing view to view the routing operations for this position.

Body

General Information

Identifies the position and the item being produced. Most fields in this section are set when the work order is created.

Field	Description
WO ID	The ID of the parent work order (DocEntry).
Position ID	The sequential line number of this position within the work order.
Item Code	The item (finished good) to be produced. Set when the position is created from the work order.
Item Name	The description of the item.
Version	The version of the item being produced, when version control is active.
Short Variant	The short variant code of the item, if applicable.
Drawing Number	The engineering drawing reference for the item.
Status	The current status code of the position.
Warehouse	The warehouse the finished output is to be posted to.
Project	A project code for cost tracking. Links this position's costs to the project.
Barcode	A barcode identifier for this position line.
Batch ID	The batch ID that will be assigned to the output when it is goods-receipted.

Quantities

The planned, made, ordered and consumed quantities for this position. Qty Planned and Qty Made are updated by postings. Qty Ordered and Qty Consumption can be edited directly.

Field	Description
Qty Planned	The quantity planned to be produced. Set when the position is created.
Qty Made	The quantity already produced and confirmed by a goods receipt posting.
Qty Ordered	The quantity ordered or otherwise committed for this position.
Qty Consumption	The quantity of components consumed against this position so far.
Unit of Measure	The unit of measure for all quantities on this position.

Dates

The planned schedule for this position. All date fields are set from the parent work order when the position is created.

Field	Description
Start Date	The planned date and time when production of this position is to begin.
End Date	The planned date and time when production of this position is to finish.
Delivery Date	The date the finished output of this position is due.

References

Traceability links back to the originating document that generated this position, plus a sort order field.

Field	Description
Base Entry	The internal key (DocEntry) of the source document this position was created from.
Base Doc Num	The document number of the source document.
Base Line	The line number within the source document.
Base Type	The type of the source document (e.g. Sales Order, Production Order).
Sort Order	A numeric value that controls the sequence in which this position is displayed in lists and reports.

Closing

Fields that record the closing state of the position. All are updated by the system when the position is closed.

Field	Description
Closed	Checked when the position has been formally closed. A closed position cannot receive further postings.
Closed Date	The date and time the position was closed.
Closed By	The user who closed the position.
Print Flag	Checked when the position has been printed (e.g. a picking list or production label).
Print Date	The date the position was last printed.

Notes

A free-text area for any additional instructions or comments that apply to this position.

Field	Description
Additional Text	A free-text field spanning the full section width. Use it for special handling notes, quality requirements or any other information relevant to this production line.

Work Order

A summary of the parent work order's key fields, shown here for reference without having to navigate back to the work order.

Field	Description
WO Customer / WO Customer Name	The customer code and name of the parent Work order.
WO Type	The production type of the parent Work order.
WO Sales Order	The sales order linked to the parent Work order.
WO Status	The current status of the parent Work order.
WO Project	The project code of the parent Work order.
WO Order Date	The order date of the parent Work order.
WO Start Date / WO End Date	The planned start and end date/time of the parent Work order.
WO Delivery Date	The delivery date of the parent Work order.
WO Closed	Checked when the parent Work order is closed.
WO Locked	Checked when the parent Work order is locked.
WO Print Flag	Checked when the parent Work order has been printed.
WO Notes	The additional text from the parent Work order.

UDF

If your company has defined extra user fields for work order positions, they appear here as UDF 1 through UDF 15. Labels and data types are configured per installation. This section is only shown when at least one custom field has been set up.
